How does the bridge work?

Sending a Non-Fungible Token (NFT)

For the purposes of outlining the bridge functionality at a simplistic level, we will make reference to:

  • The sending blockchain as the source blockchainThe receiving blockchain as the target blockchain
  • Non-fungible tokens are transferred between blockchains via the following steps:

1. NFT locked in source blockchain

NFTs are locked in the source blockchain smart contract / pallet (we will call this the native token)

Code-1

2. Wrapped NFT minted in source blockchain

A 1:1 representation of the native token is minted as a wrapped token in the target blockchain.

Code-2

3. Wrapped NFT sent to target blockchain

The wrapped token is then sent to the target blockchain via the below function. (Rust example):

Code-3

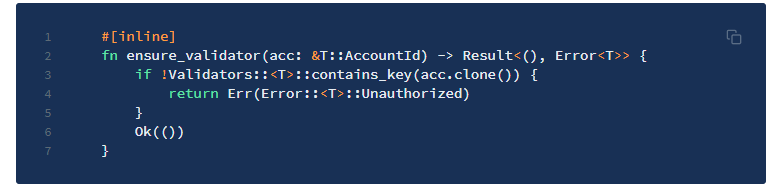

4. Validator signatures checked

The bridge validators listen to bridge-related events via the nodes of the linked blockchains and sign the transactions in the target ledger with their private keys. Code-4

5. Validator signatures collected

Once all signatures are confirmed to have come from verified validators, their signatures are collected. Code-5

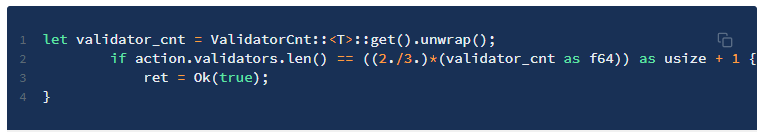

6. BFT threshold calculated

The target blockchain smart contract checks that the BFT threshold of the multisignature is reached.

Code-6

7. Wrapped NFTs released

Wrapped NFTs are then released to the designated receiver account on the target blockchain.

Code-7

Other Functions

Transferring Fungible Tokens

function validate_transfer(
        uint128 action_id,
        uint64 chain_nonce,
        address to,
        uint256 value
        ) public {
                ValidationRes res = validate_action(action_id, Action.Transfer);
                if (res == ValidationRes.Execute) {
                    token.mint(to, chain_nonce, value);
                }
}

Sending Wrapped Fungible Tokens to a target blockchain

function withdraw(
        string memory to,
        uint64 chain_nonce,
        uint256 value
        ) public {
                token.burn(msg.sender, chain_nonce, value);
                emit Unfreeze(action_cnt, chain_nonce, to, value);
                action_cnt += 1;
    }

Transferring NFTs

function validate_transfer_nft(
    uint128 action_id,
    address to,
    string calldata data
    ) public {
        ValidationRes res = validate_action(action_id, Action.TransferUnique);
        if (res == ValidationRes.Execute) {
            token.mint(to, nft_cnt, 1);
            nft_cnt += 1;
            token.setURI(nft_cnt, data);
        }
    }

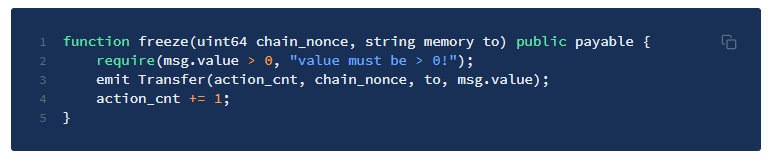

Locking a native token & sending its wrapped quantity to a target blockchain

function freeze(uint64 chain_nonce, string memory to) public payable {
        require(msg.value > 0, "value must be > 0!");
        emit Transfer(action_cnt, chain_nonce, to, msg.value);
        action_cnt += 1;
}
